High-quality placement machine feeder price

Min. Order:
1 Piece/Pieces
  • Product Description
Product Attributes

Model No.JUKI


Supply Ability & Additional Informations

PackagingCarton, wooden box, pallet


Place of Originshenzhen



Packaging & Delivery
Selling Units:
Package Type:
Carton, wooden box, pallet

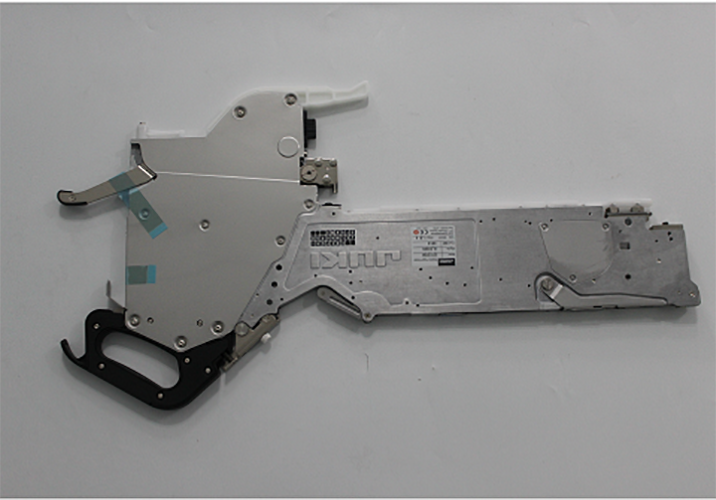

High-quality placement machine feeder price

The feeder of SMT is the transliteration of Feeder. It is a feeder or feeder, also called a feeder. Its function is to install SMD placement components on the feeder. The feeder provides components for the placement machine for placement. . For example, there is a kind of PCB that needs to mount 6 kinds of components, and then 6 feeders are needed to install the components to feed the placement machine. 2. Classification of feeders 1. Distinguish by machine brand and model.

Generally speaking, different brands of placement machines use different feeders, but different models of the same brand can generally be used in common. 2. According to the package size and type of the component tape. Types are generally 4 types 1. Tape packaging 2. Tube packaging 3. Tray (also known as waffle tray) 4. Bulk tape packaging will also distinguish the size of the tape packaging (such as 8mm ,16mm,24mm,32mm,44mm, etc.)

Placement machine feeder

1. According to the feeding method, the common ones are

1. Belt feeder,
The belt feeder is the most commonly used standard feeder in the placement machine feeder. The traditional structure methods include wheel type, claw type, pneumatic type and multi-pitch electric type. Now it has developed into high-precision electric type and high-precision electric type. Compared with the traditional structure, the transmission accuracy is higher, the feeding speed is faster, the structure is more compact, the performance is more stable, and the production efficiency is greatly improved.
The basic width of the strip material is: 8mm, 12mm, 16mm, 24mm, 32mm, 44mm and 52mm, etc., and the spacing is 2mm, 4mm, 8mm, 12mm and 16, etc.; the diameter of the reel is 7 in and 13 in.

2. Tray feeder, tray feeder
It can be divided into single-layer structure and multi-layer structure. The single-layer tray feeder is directly installed on the feeder rack of the placement machine and occupies multiple slots. It is suitable for the situation where there is not much tray-type material; multi-layer tray-type feeder The material has a multi-layer automatic conveying tray, which takes up a small space and has a compact structure. It is suitable for situations with a large amount of tray materials. Most of the tray components are various IC integrated circuit components.

When using pallet materials, you need to pay attention to keeping the exposed components of the large tube corners to prevent damage to the mechanical and electrical properties during transportation and use. When TQFP, PQFP, BGA, TSOP and SSOPs components are used in the tray, the tray size can reach 150mm x 330.2mm and the height is 25.4mm. What's interesting is that the tray feeder can not only supply the pick-up components of the placement machine, but also serve as a potential throwing station for valuable components.

3. Tube Feeder
Tubular feeders usually use a vibrating feeder to ensure that the components in the tube continue to enter the pickup position of the placement head. Generally, PLCC and SOIC use this method to feed. The tubular feeder has the characteristics of good protection of the component pins, poor stability and standardization, and low production efficiency.

Company Overview


Our company integrates SMT equipment sales and maintenance.

The products cover all aspects of the SMT industry. The main business scope is placement machines, peripheral products, feeders, suction nozzles, and placement machine accessories services.

Engaged in the business of JUKI equipment and JUKI Feeder for 14 years.

Strives for innovative development and dedication to provide you with assured quality products and services.

We provide customers with competitive, safe and reliable products, solutions and services in the fields of SMT patches and plug-ins.

Open cooperation with the industry's ecological partners, increase business barriers, continue to create value for customers, and insist on continuous innovation around customer needs.

Our team


We always put you first, continue to grow and innovate, and provide you with suitable solutions.

The brands we work with


We have in-depth discussions and cooperation with many brands, work down-to-earth, and win trust.

Actively expand products to SMT peripheral equipment.

Integrate the advantages of products to provide customers with a complete set of SMT equipment and production solutions, as well as a fully automated intelligent industry line.

Provide customers with a full range of solutions to achieve the goal of improving efficiency and reducing costs, so as to achieve a win-win situation for customers and the company.

Looking for ideal Placement Machine Feeder Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Mounter Feeder Price are quality guaranteed. We are China Origin Factory of Placement Machine Feida Brand. If you have any question, please feel free to contact us.
